ACE-High System > Bereich, ACCHAN > England > Shetlands Tail
ACE-High System, (das System...) von 1958 bis 1995
_____________________________________________________________________________________________________________________________________________________________________________

60°49'36.39"N/00°50'39.98"W - 229 m.üNN
Antennen ü. GDN  : L.o.S. Tower, Höhe unbekannt
Site Code ab 1958 : eac (Shetlands Tail)
Site Code ab 1971 : USVZ
Status                  : Aufgegebene Nutzung
Status heute         : unbekannt
Ansicht                 : Liegenschaft [4]
___________________________________________________________________________________________________________________________________________________________________________________________________________
Übersichtspläne - Bezeichnungen - Transmitterverbindungen, 1959 (1) (3)

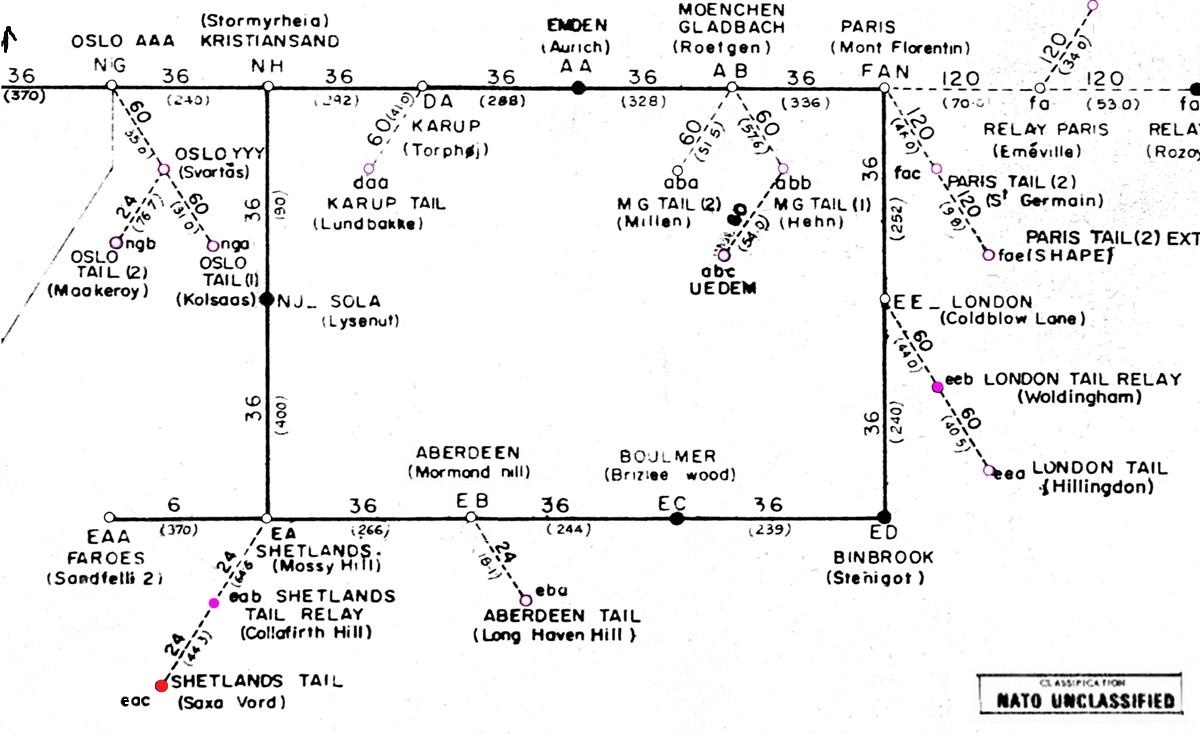

Linienplan, von 1959 (ACE-High System)
Verbindungen
eac - Shetlands Tail (Saxa Vord) > eab - Shetlands Tail Relay (Collafirth Hill) - L.o.S.-Line - Station mit Multiplex
Channel Capacity 24 - Entfernung zwischen den Stationen - Luftlinie - 44,50 Km
___________________________________________________________________________________________________________________________________________________________________________________________________________

Übersichtspläne - Bezeichnungen - Transmitterverbindungen, 1976 (1) (4)
Linienplan, von 1976 (ACE-High System)
Verbindungen
USVZ - Shetlands Tail (Saxa Vord) > UCOZ - Shetlands Tail Relay (Collafirth Hill) - L.o.S.-Line - Station mit Multiplex
Channel Capacity 24 - Entfernung zwischen den Stationen - Luftlinie - 44,50 Km
______________________________________________________________________________________________________________________________________________________________________________

Linienplan, von 1976 (SatCom System)

Verbindungen
USVZ - Shetlands Tail (Saxa Vord) > SatCom Station F29 - Saxa Vord
Entfernung zwischen den Stationen - Luftlinie - 0,19 Km
___________________________________________________________________________________________________________________________________________________________________________________________________________

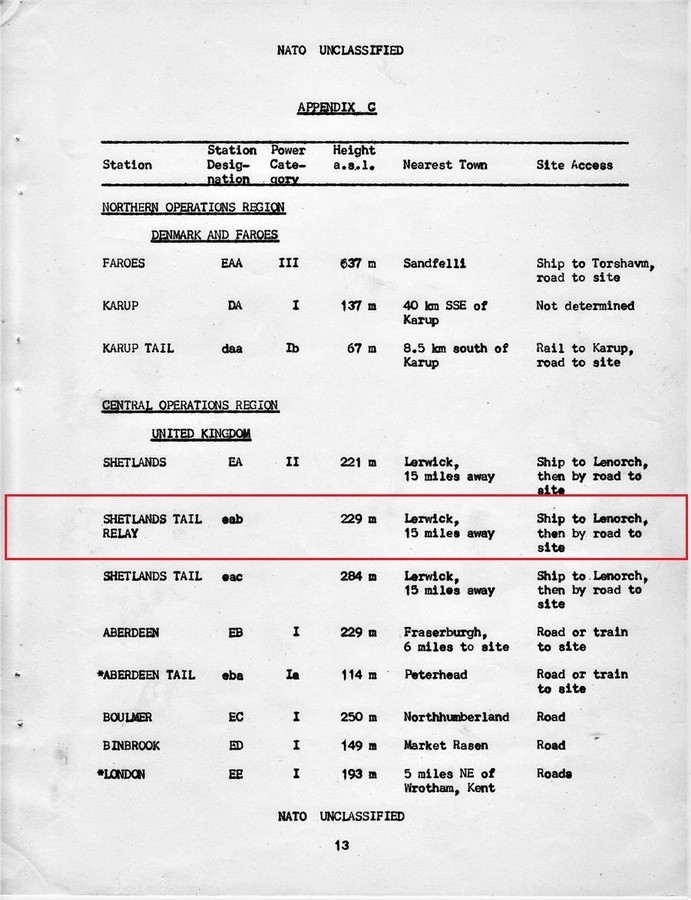

Power Category, Transmitter Typ
Station eac, Power Category - Ia
Station eac, Transmitter Typ - 1R (Radio Line)

Info zu Station Power Plant Categories:
Power Plant arrangements at ACE High Stations fall into ix general categories with are variante on combinations of main supplied from sources the station, and prime movers within the station. There are designated as follows:
"Category Ia" Primary and standby power obtained from existing facilities.
___________________________________________________________________________________________________________________________________________________________________________________________________________
Beschreibungen
Link Seiten, Wikipedia
Thema, RAF Saxa Vord [3]
Autor  - Wikipedia
Quelle - Wikipedia
ULR    - Wikipedia

"Remote Radar Head Saxa Vord oder RRH Saxa Vord (auch bekannt als RAF Saxa Vord) ist eine Radarstation der Royal Air Force auf der Insel Unst, der nördlichsten der Shetlandinseln in Schottland. Seit Juli 2019 ist sie nach ihrer Schließung im Jahr 2 wieder eine voll funktionsfähige Radarstation[2006].  Das Motto des Senders Praemoneo de Periculis ("Vorahnung der Gefahr") spiegelt seine Rolle wider. Die RAF Saxa Vord liegt weiter nördlich als Sankt Petersburg in Russland und auf dem gleichen Breitengrad wie Anchorage, Alaska. Die Station wurde nach Saxa Vord benannt, der mit 935 ft (285 m) der höchste Hügel auf Unst ist. Er hält den inoffiziellen britischen Rekord für die Windgeschwindigkeit, der 1992 mit 197 mph (317 km/h) gemessen wurde – kurz bevor die Messgeräte weggeblasen wurden." [3]
_______________________________________________________________________________________________________________________________________________________________________________
Link Seiten, sonstige Publikationen
Thema, A History of RAF Saxa Vord
Autor  - Gordon Carle
[4]
Quelle - ACE High in Shetland [4]
ULR    - Saxa Vord

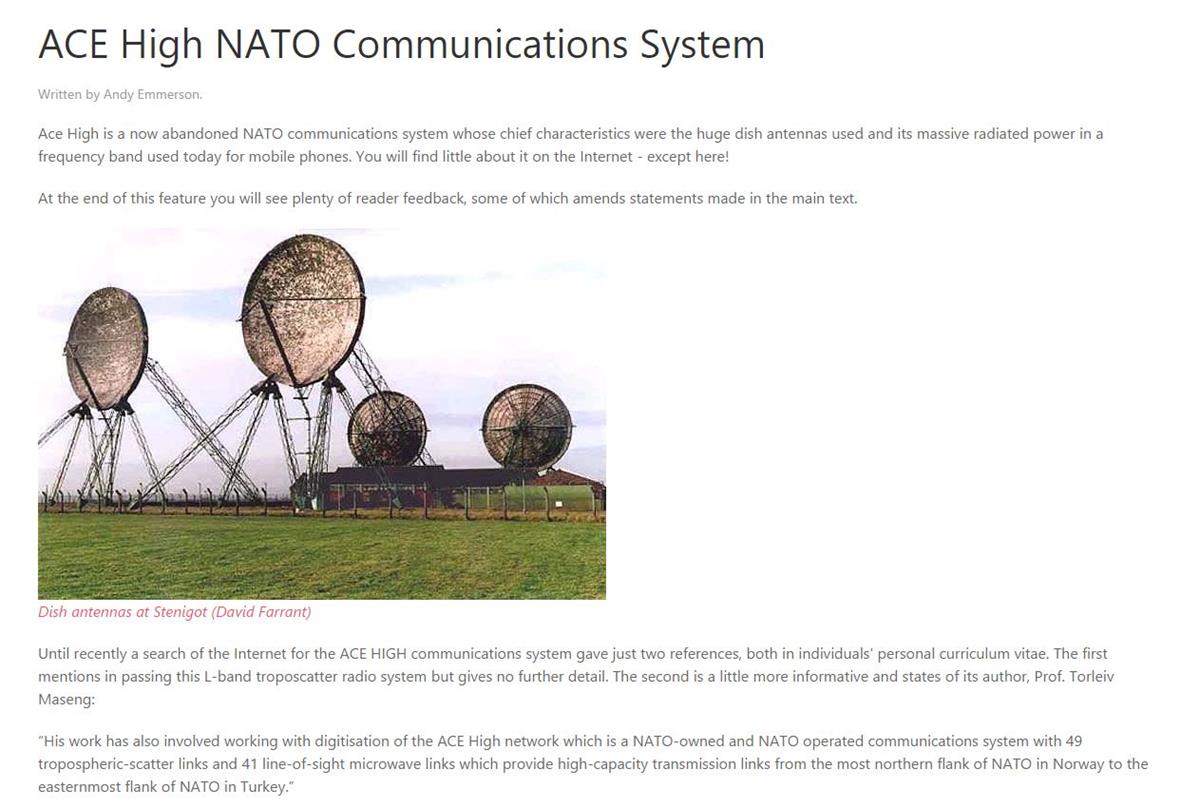

"ACE High in Shetland
ACE High was a NATO communications system which stretched over 8,000 miles from north Norway to eastern Turkey. Its purpose was to provide early warning links and to permit commanders to discuss strategy during the cold war period. Its’ origins were in the mid 50’s and it has now been superseded by other communications links. Over 80 ground stations were involved, half of which used large aerial arrays to propagate high frequency radio signals which were “bounced” over the horizon using tropospheric forward scatter techniques (hence FSS Mossy Hill – Forward Scatter Station). These Units also had microwave aerials which linked into the other sites, using line of sight techniques. The smaller stations were off-shoots from the main line of larger stations. I will leave the experts to explain the system in more detail. There is a good article on the Ace High System on the Subbrit site here:

So, back to the subject of this section, Ace High in Shetland. There were four main elements to the system in Shetland, Mossy Hill in the south mainland with its large tropospheric scatter arrays and microwave tower, 2 microwave “off-shoot” sites at Collafirth Hill and Saxa Vord and; fourthly, an admin and accommodation site at Maybury Camp at Virkie in the south mainland. (Left click on pictures to enlarge)." [4]
___________________________________________________________________________________________________________________________________________________________________________________________________________
die Daten

Die ACE-High Station Shetlands Tail wurde in den Jahren "o.A" bis "o.A" erbaut und ging nach einer Testphase im Jahr "o.A" in die offizielle Betriebsphase. Die Bezeichnung der ACE-High Station lautete nach der offizielen Inbetriebnahme der Station "Shetlands Tail (Saxa Vord)" und die NATO Code hierzu war "eac".
eac - Shetlands Tail (Saxa Vord) (e) England (ac) NATO Codierung - Station ac
___________________________________________________________________________________________________________________________________
1971, wurden alle ACE-High Stationen im "ACE-High Network Europe" neu codiert, die Bezeichnung der ACE-High Station lautete danach "Shetlands Tail (Saxa Vord)" und die NATO Code hierzu war "USVZ".
USVZ- Shetlands Tail (Saxa Vord) (U) United Kingdom of Great Britain (SV) Stadt / Geländebezeichnung (Z) ACE-High System
_______________________________________________________________________________________________________________________________________________________________________________
1991, Die Betriebsphase endete mit Schliessung der ACE-High Station im Januar.
______________________________________________________________________________________________________________________________________________________
die Geschichte

"RAF Saxa Vord (RRH Saxa Vord, in Unst, with AN/TPS-77) is a remote radar station providing long-range radar coverage of its approaches. The data is fed into the Integrated Command and Control System within the UK"
_______________________________________________________________________________________________________________________________________________________________________________
und das NADGE Radar System

Die NADGE Radar Station Saxa Vord, NADGE Radar England (9), ist verbunden mit UK Air Surveillance and Control Systems, at RAF Boulmer und dem Control and Reporting Centre, at RAF Boulmer.
"2008, "The Royal Air Force's Combined Air Operations Centre (CAOC 9) at RAF High Wycombe was deactivated in 2008 and its responsibilities were transferred to the Combined Air Operations Centre Finderup (CAOC 1).

2013, After Finderup (CAOC 1) was deactivated in 2013 the responsibility for the air defense of the United Kingdom was transferred to CAOC 2, Uedem in Germany. The Royal Air Force's Control and Reporting Centres report to it." [7]
___________________________________________________________________________________________________________________________________________________________________________________________________________
heute (1)

Die militärische Nutzung der Liegenschaft durch das ACE-High System wurde vollständig beendet.
2019, Das Gelände der Liegenschaft, ist unter Google Earth erkennbar
___________________________________________________________________________________________________________________________________________________________________________________________________________
2010, Zufahrt zu der Liegenschaft.
_____________________________________________________________________________________________________________________________________________________________________________
